Schedule 80 steel pipe pressure rating

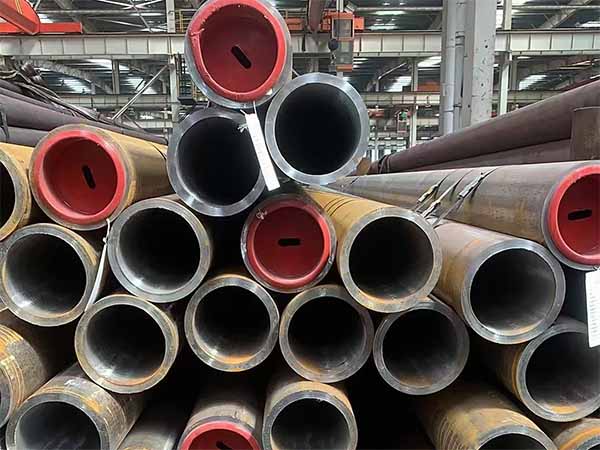

Schedule 80 steel pipe is a commonly used thickened pipe in high-temperature and high-pressure fields. Compared with Sch 40 (STD), its wall thickness is significantly increased, so it can withstand higher internal pressure and temperature. It is widely used in harsh conditions such as steam pipelines, high-pressure water supply systems, hydraulic pipelines, and chemical reactor connection pipelines.

What determines the pressure rating of Schedule 80 steel pipes?

The pressure rating of Schedule 80 steel pipes depends on various factors, including material grade, pipe size, operating temperature, connection method, and manufacturing method. It is not a fixed value but rather the result of engineering calculations and standardized testing. The following is a detailed explanation of each factor:

1. Wall Thickness (Main Factor)：For all nominal pipe diameters, the wall thickness of Schedule 80 steel pipes is greater than that of Schedule 40 steel pipes. The thicker the wall, the higher the permissible working pressure.

For example: Schedule 40 wall thickness: 3.91mm; Schedule 80 wall thickness: 5.54mm. Increasing the wall thickness directly improves the pressure resistance by approximately 50%.

2. Material Grade: Pressure rating is largely influenced by steel grade and manufacturing standards. The mechanical properties of the material determine the upper limit of pressure resistance; different materials exhibit significant differences in pressure rating under the same SCH (Standard Pressure Rating).

3. Operating Temperature: Increased temperature affects material strength (thermal degradation effect). At 400°F (204°C), pressure resistance may decrease by 20%–40%, and at 800°F (427°C), pressure resistance decreases by 60%–80%.

4. Manufacturing Method (Seamless vs. Welded): The manufacturing method is also a crucial factor affecting pipeline pressure rating. Seamless Schedule 80 steel pipes can withstand higher pressures and are suitable for high-temperature, high-pressure systems. Welded Schedule 80 steel pipes have lower pressure resistance, especially at high temperatures.

5. Pipe Diameter (NPS): Smaller diameter pipes can withstand higher pressures. For example, a 1" SCH 80 pipe can withstand pressures exceeding 4,000 PSI, while an 8" SCH 80 pipe may only withstand 1,000 PSI.

SCH 80 Steel Pipe Pressure Rating

What is the pressure rating of steel pipes? This is a frequently asked question, the pressure rating of a steel pipe refers to the maximum internal pressure (usually expressed in psi, bar, or MPa) that the pipe can safely withstand at a specific operating temperature. It is not a fixed constant, but rather a dynamic result related to multiple factors such as the pipe's wall thickness (Schedule number), material grade (e.g., A106 Gr.B, A312 TP316), operating temperature, and outer diameter.

Carbon Steel Pipes - SCH 80 Steel Pipe Pressure Rating

Size (in)	Outside Diameter (in)	Wall Thickness (in)	Inside Diameter (in)	Schedule	Temperature (oF)
					100	200	300	400	500	600	650	700
					Allowable Stress (psi)
					20000	20000	20000	20000	18900	17300	17000	16500
1/2	0.840	0.147	0.546	80	6980	6980	6980	6980	6596	6038	5933	5759
3/4	1.050	0.154	0.742	80	5721	5721	5721	5721	5406	4948	4863	4720
1	1.315	0.179	0.957	80	5266	5266	5266	5266	4976	4555	4476	4344
1 1/4	1.660	0.191	1.278	80	4380	4380	4380	4380	4139	3789	3723	3613
1 1/2	1.900	0.2	1.5	80	3977	3977	3977	3977	3759	3440	3381	3281
2	2.375	0.218	1.939	80	3433	3433	3433	3433	3244	2970	2918	2832
2 1/2	2.875	0.276	2.323	80	3602	3602	3602	3602	3404	3116	3062	2972
3	3.500	0.3	2.9	80	3191	3191	3191	3191	3016	2761	2713	2633
3 1/2	4.000	0.318	3.364	80	2946	2946	2946	2946	2784	2549	2505	2431
4	4.500	0.337	3.826	80	2766	2766	2766	2766	2614	2393	2351	2282
5	5.563	0.375	4.813	80	2476	2476	2476	2476	2340	2142	2105	2043
6	6.625	0.432	5.761	80	2391	2391	2391	2391	2260	2069	2033	1973
8	8.625	0.5	7.625	80	2115	2115	2115	2115	1998	1829	1798	1745
10	10.75	0.594	9.562	80	2012	2012	2012	2012	1901	1740	1710	1660
12	12.75	0.688	11.374	80	1963	1963	1963	1963	1855	1698	1668	1619
14	14.00	0.75	12.5	80	1948	1948	1948	1948	1841	1685	1656	1607
16	16.00	0.812	14.376	80	1842	1842	1842	1842	1740	1593	1565	1519
18	18.00	0.938	16.124	80	1893	1893	1893	1893	1789	1637	1609	1562

Stainless Steel Pipes - SCH 80 Steel Pipe Pressure Rating

Pipe Size (inches)	Pipe Schedule	Outside Diameter (in)	Wall Thickness (in)	Pressure Rating (psig)
				Temperature (oF)
				100	200	300	400	500	600	650	700	750
				Allowable Stress (psi)
				16700	16700	16700	15500	14400	13500	13200	12900	12600
1"	80	1.315	0.179	3061	3061	3061	2841	2640	2475	2420	2365	2310
1 1/2"	80	1.900	0.200	2303	2303	2303	2138	1986	1862	1821	1779	1738
2"	80	2.375	0.218	1985	1985	1985	1843	1712	1605	1569	1534	1498
3"	80	3.500	0.300	1844	1844	1844	1712	1590	1491	1458	1425	1391
4"	80	4.500	0.337	1596	1596	1596	1482	1377	1291	1262	1233	1204
5"	80	5.563	0.375	1428	1428	1428	1325	1231	1154	1129	1103	1077
6"	80	6.625	0.432	1379	1379	1379	1280	1189	1115	1090	1065	1040
8"	80	8.625	0.500	1218	1218	1218	1131	1050	985	963	941	919
10"	80	10.750	0.594	1159	1159	1159	1075	999	937	916	895	874

Applications Requiring Schedule 80 Pressure Rating

Schedule 80 is suitable for systems that demand higher strength, such as:

High-pressure air compressor lines

High-temperature steam lines

Oil and gas transfer pipelines

Chemical processing equipment

Hydraulic and pneumatic systems

Boiler piping

Fire protection mains

Seamless SCH 80 is typically required for extreme pressure and temperature.

Frequently Asked Questions About Schedule 80 Pipe Pressure（FAQ）

1. What is the difference in pressure rating between Sch 80 and Sch 40 pipes?

Sch 80 pipes have thicker walls than Sch 40 pipes, therefore they have a higher pressure rating and can withstand higher operating pressures.

2. How to calculate the pressure rating of a Sch 80 pipe?

The pressure rating of a pipe is usually calculated based on Barlow's Formula. The most basic formula is P = (2 × S × t) / D, where P is the theoretical burst pressure, S is the allowable stress of the material, t is the minimum wall thickness, and D is the outer diameter of the pipe.

Summary

Schedule 80 steel pipes, with their thicker walls and superior mechanical properties, can withstand working pressures ranging from 1,000 to 6,000 PSI (the exact value varies depending on pipe diameter, material, and temperature), making them an ideal pressure-resistant solution for petrochemical, high-temperature steam systems, and high-pressure industrial piping networks.
