Piling Pipe

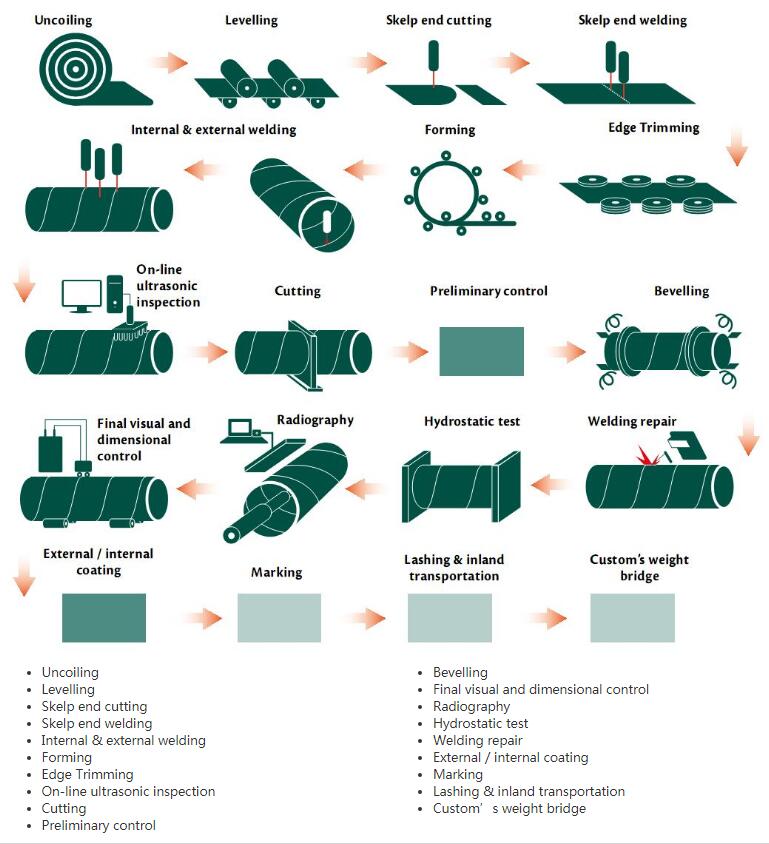

To manufacture high-quality steel pipe piling, we use the coils or plates – between 5mm and 50mm thickness with the Submerged Arc Welding technology , comply to SSAW and LSAW type with spiral welding seam and straight welding seam respectively.

Our pipe pilings are typically 12 to 36 inches in diameter but can be custom made to your exact size and specification. These pilings are effective load bearers and are perfect for construction with heavy loads or deep foundation structures.

INQUIRE NOW

Description
Images

Steel pipe piles are cylindrical steel foundation members used to transfer structural loads to deeper, more competent soil or rock layers. They can also serve as permanent casings for cast-in-place concrete piles. Depending on the project design, steel pipe piles can be manufactured with longitudinal or helical weld seams, with diameter, wall thickness, length, and material grade selected to meet the required structural performance.

Technical Specifications:

Outer Diameter (OD): 219.1 mm to 3048 mm (8" to 120")
Wall Thickness (WT): 5.0 mm to 50.0 mm
Length: Single lengths up to 18–24 meters, custom fabrication, and field-spliced lengths available.

Welding Technology:

SSAW (Spiral Submerged Arc Welded Pipe)
LSAW (Longitudinal Submerged Arc Welded Pipe)

ERW (Electric Resistance Welded Pipe)

Applicable Standards & Steel Grades:

ASTM A252:

Grade	Minimum yield strength	Minimum tensile strength
Grade 1	30,000 psi (205 MPa)	50,000 psi (345 MPa)
Grade 2	35,000 psi (240 MPa)	60,000 psi (415 MPa)
Grade 3	45,000 psi (310 MPa)	66,000 psi (455 MPa)

EN 10219 / EN 10210: S235JRH, S275J0H/J2H, S355J0H/J2H/K2H, S420MH

API 5L: Grade B, X42, X52, X60, X65, X70

Applications of steel pipe piles

Steel pipe piles are used in foundation and infrastructure projects where the required load capacity or ground conditions cannot be adequately addressed by shallow foundations alone.

Typical applications include:

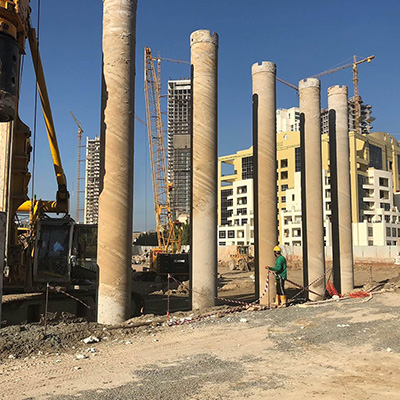

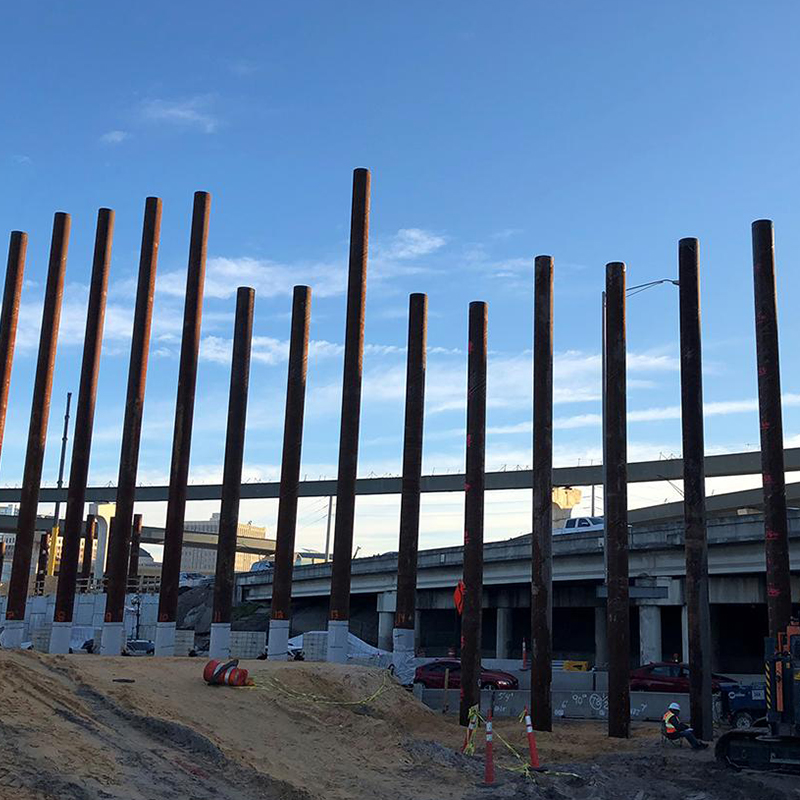

Building and industrial foundations
Bridge piers and highway infrastructure
Marine piles for ports, docks, and quay structures
Foundation support for heavy equipment and structures
Pile foundations in deep or variable soil conditions
Steel casings for cast-in-place concrete piles

Value-Added Services & Customization:

Beveling & End Preparation (30°, 37.5° for field welding)

Welding Accessories: Drive shoes, backing rings, conical points, and pile caps.

Protective Coatings: 3PE/3PP, Single/Double layer FBE, Coal Tar Epoxy, and Marine Anti-corrosion Coatings.

Ordering steel pipe piles

To obtain an accurate quotation, please provide the following information:

Required outside diameter and wall thickness
Pile length and quantity
Material grade and applicable standard
Manufacturing process, if specified
End preparation and connection requirements
Inspection, documentation, and coating requirements

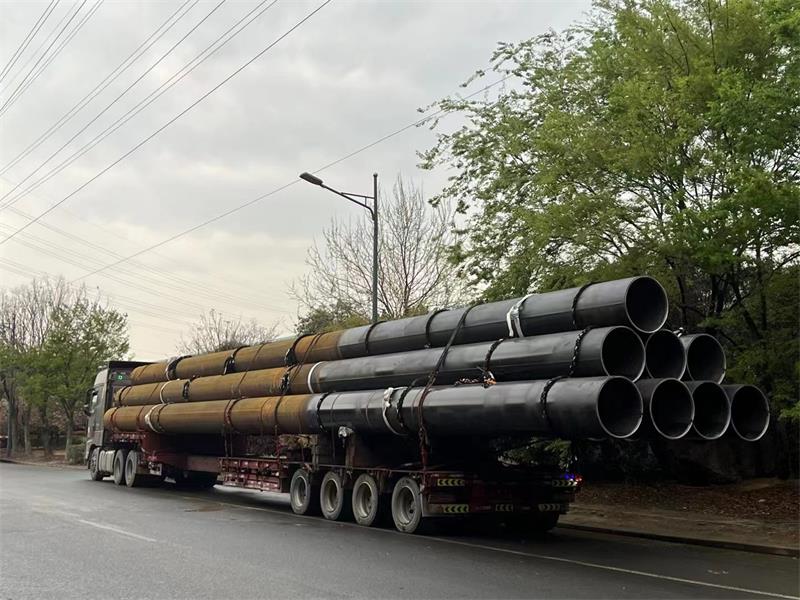

Delivery destination and project schedule

Central Steel can review the specification and confirm the feasible dimensions, production options, and supply conditions for your project.
