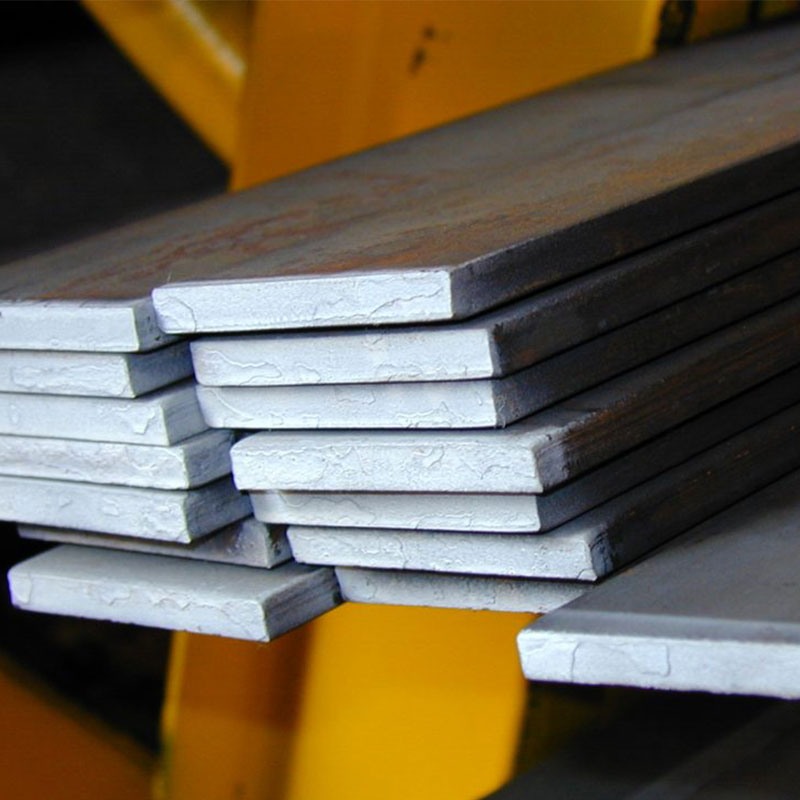

Flat Bars

Material
A36
A36 steel flats are for general structural use with a 36 KSI minimum yield strength. Material is certified to ASTM A36 and ASME SA36.

Uses
Actually Flat bar products are widely and professionally applied on manufacturing industry of steel structure, mechanical manufacture, automobile industry, Mine machinery and hoisting machinery, etc.

INQUIRE NOW

Description
Specification

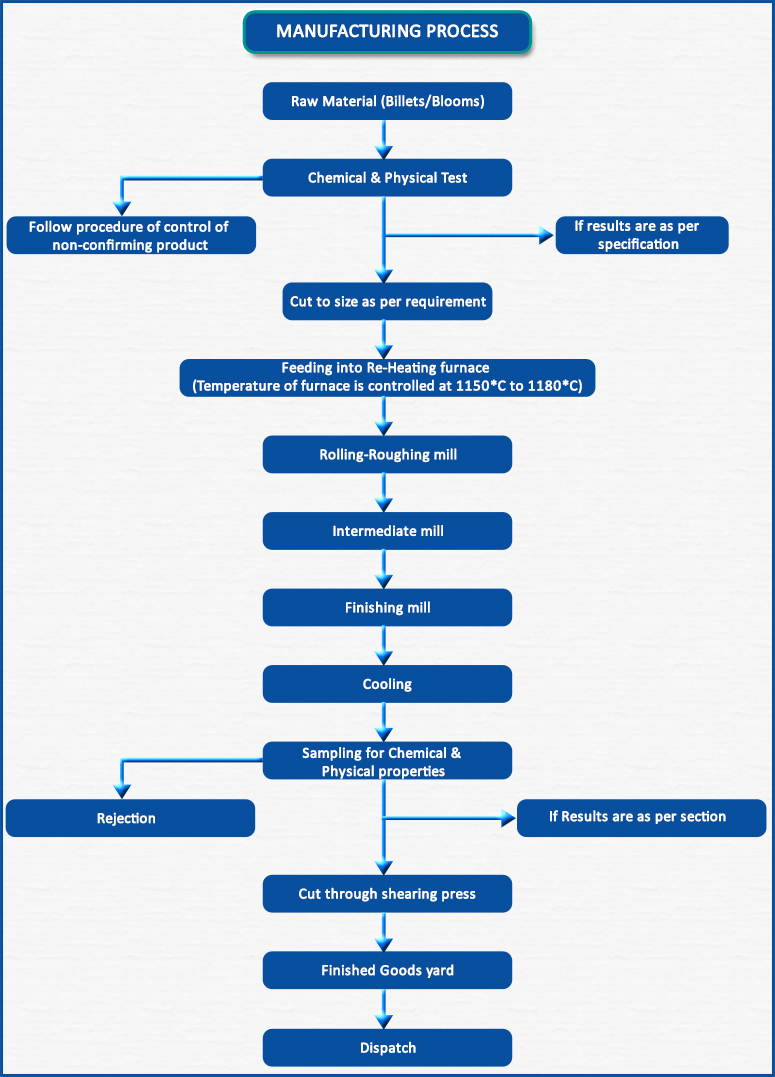

Process
Packing

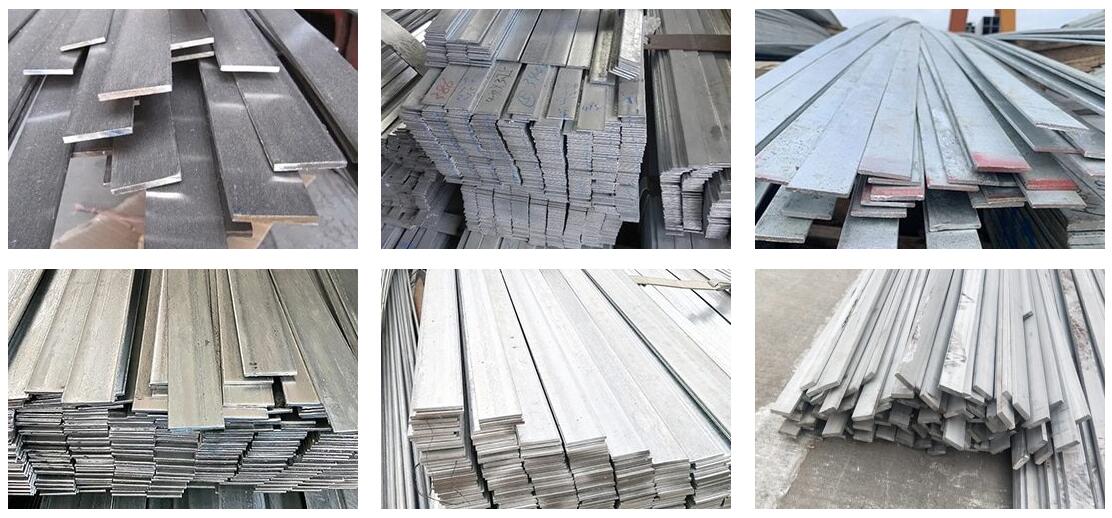

Images

Material
A36
A36 steel flats are for general structural use with a 36 KSI minimum yield strength. Material is certified to ASTM A36 and ASME SA36.

Uses
Actually Flat bar products are widely and professionally applied on manufacturing industry of steel structure, mechanical manufacture, automobile industry, Mine machinery and hoisting machinery, etc.

Hot rolled flat bar steel
1. It may use for construction members, staircases and fences, etc. The hot rolled flat bar features smoother surface, good weldability, stronger load capacity, etc, so it is met to requirement of construction members, fences and staircases products.
2. Hot rolled flat steel can be used as the billet of welded steel and the slab of pack-rolled sheet.
3. The hot rolled flat steel could finish and produce about hoop iron because of its rectangle shape, good flexibility, variety of specification of width and length.
Cold rolled flat bar steel
The cold rolled or cold drawn flat bar meets to steel property and good surface evenness, so it is well used in machine tool building, hydroelectric facility manufacturing, fabrication of wood-working machine, home appliances, office equipment, instrument and meters, construction machinery, standard parts, steel furniture and crafts, fitness facilities, hardware industry, aviation, etc.

Advantages
The surface clean. The flat bar steel with the process of adopting high pressured water for descaling ensures smooth and clean of surface of steel flat bar.
The steel flat bar is made by negative deviation rolling, however it is delivered as actual weights. So the rate of uses is higher as 1 to 5 percentage than steel plates’.
It could be manufactured according to the customers’demand, with fixed thickness, width and lengths. Meanwhile, reducing the cutting method and saving the time and process for customers; lower the consumption of labors and materials as time-saving, labour-saving and material-saving; avoid the process loss of row materials.

Size	Thickness (s) mm
Size	3	4	5	6	8	10	12	14	15	16	18	20	25	30	40	50
Width (a) mm	Weight kg/ml
10	0,236	0,314	0,393	0,471	0,628
12	0,283	0,377	0,471	0,565	0,754	0,942
14	0,330	0,440	0,550	0,660	0,880	1,100	1,320
16	0,377	0,500	0,630	0,750	1,010	1,260	1,510
18	0,424	0,565	0,710	0,850	1,130	1,410	1,700
20	0,467	0,623	0,780	0,940	1,250	1,560	1,960	2,180	2,340	2,490	2,800
25	0,584	0,780	0,970	1,170	1,560	1,950	2,340	2,730	2,920	3,120	3,530
30	0,700	0,940	1,170	1,400	1,870	2,340	2,800	3,270	3,510	3,730	4,240
35	0,820	1,100	1,370	1,650	2,200	2,750	3,300	3,850	4,120	4,350	4,950	5,500	6,870
40	0,940	1,250	1,560	1,870	2,490	3,120	3,740	4,360	4,670	4,990	5,610	6,230	7,850	9,420
45	1,050	1,400	1,750	2,100	2,800	3,510	4,210	4,910	5,260	5,610	6,310	7,010	8,830	10,600
50	1,170	1,560	1,940	2,340	3,120	3,890	4,670	5,450	5,840	6,230	7,010	7,790	9,810	11,780	15,700
60	1,410	1,880	2,340	2,800	3,740	4,670	5,610	6,540	7,010	7,480	8,410	9,350	11,780	14,130	18,840	23,560
70	1,650	2,200	2,750	3,300	4,400	5,500	6,600	7,700	8,240	8,790	9,890	10,990	13,740	16,490	21,980	27,480
80	1,880	2,510	3,140	3,770	5,020	6,280	7,450	8,790	9,420	10,050	11,300	12,560	15,700	18,840	25,120	31,400
90	2,120	2,830	3,530	4,240	5,650	7,070	8,480	9,890	10,600	11,300	12,720	14,130	17,660	21,200	28,260	35,320
100	2,360	3,140	3,930	4,710	6,280	7,850	9,420	10,990	11,770	12,560	14,630	15,700	19,630	23,550	31,400	39,260
110	2,590	3,450	4,320	5,180	6,910	8,640	10,360	12,090	12,950	13,820	15,540	17,270	21,590	25,910	34,540	43,180
120	2,830	3,770	4,710	5,650	7,540	9,420	11,300	13,190	14,130	15,070	16,960	18,840	23,550	28,260	37,680	47,100
130	3,060	4,080	5,100	6,120	8,160	10,210	12,250	14,290	15,310	16,330	18,370	20,410	25,510	30,620	40,820	51,020
140	3,300	4,400	5,500	6,600	8,790	10,990	13,190	15,390	16,490	17,580	19,780	21,980	27,480	32,970	43,960	54,960
150	3,530	4,710	5,890	7,070	9,420	11,770	14,130	16,480	17,660	18,840	21,200	23,550	29,440	35,330	47,100	58,880
160	3,770	5,020	6,280	7,540	10,050	12,560	15,070	17,580	18,840	20,100	22,610	25,120	31,400	37,680	50,240	68,800
180	4,240	5,650	7,060	8,480	11,300	14,130	16,960	19,780	21,200	22,610	25,430	28,260	35,360	42,390	56,520	70,660
200	4,710	6,280	7,850	9,420	12,560	15,700	18,840	21,980	23,550	25,120	28,260	31,400	39,250	47,100	62,800	78,500
220	5,180	6,910	8,630	10,360	13,820	17,270	20,720	24,180	25,910	27,630	31,090	34,540	43,180	51,810	69,080	86,360
250		7,850	9,810	11,780	15,700	19,630	23,550	27,480	29,440	31,400	35,330	39,250	49,050	58,880	78,500	98,100
280				13,190	17,580	21,980	26,380	30,780	32,970	35,170	39,560	43,960	54,950	65,940	87,920	110
300				14,130	18,840	23,550	28,260	32,960	35,330	37,680	42,390	47,100	58,900	70,660	94,200	118
350				16,490	21,980	27,470	32,970	38,460	41,210	43,960	49,460	54,950	68,690	82,430	110	137
400				18,840	25,120	31,400	37,680	43,960	47,100	50,240	56,520	62,400	78,500	94,200	126	157
