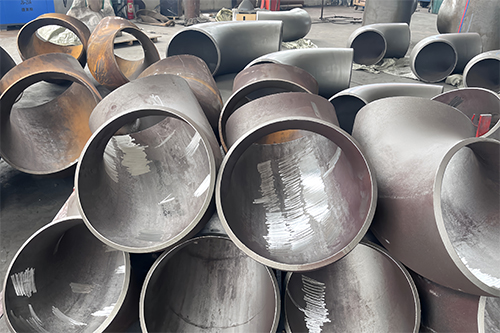

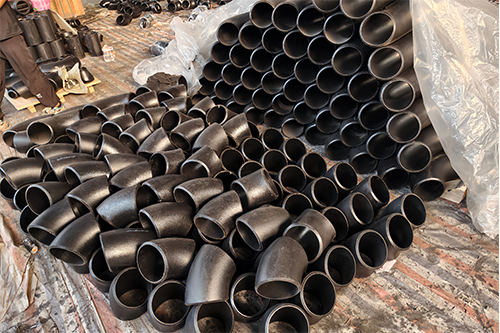

Elbow

We supply high-quality seamless and welded pipe elbows including 45°, 90°, and 180° Long Radius (LR) & Short Radius (SR) elbows in carbon steel, stainless steel, and alloy steel. Manufactured according to ASME B16.9, MSS SP-43, and DIN standards, our elbows are widely used in oil & gas pipelines, water treatment, chemical processing, and structural applications. Custom wall thicknesses (Sch 10 to XXS) and end beveling (ANSI B16.25) are available upon request.

INQUIRE NOW

Description

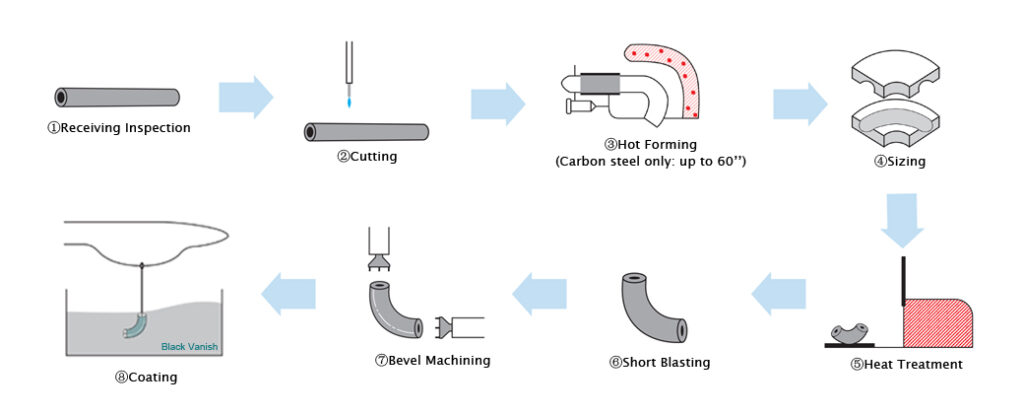

Process
Images

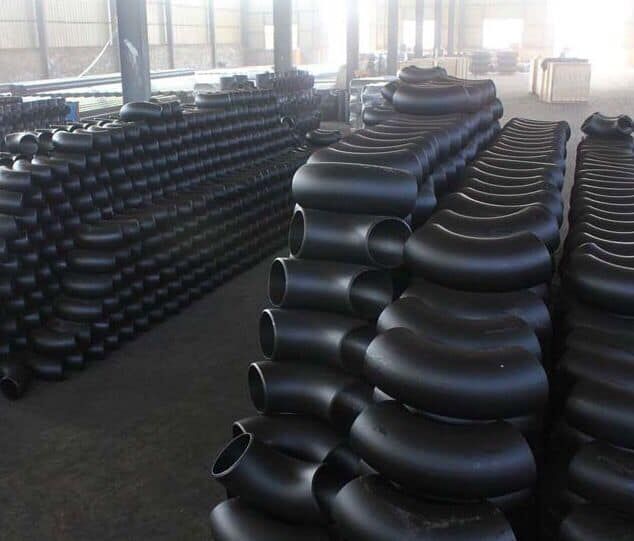

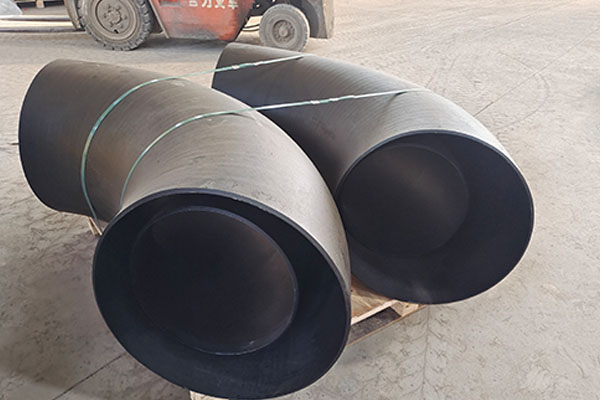

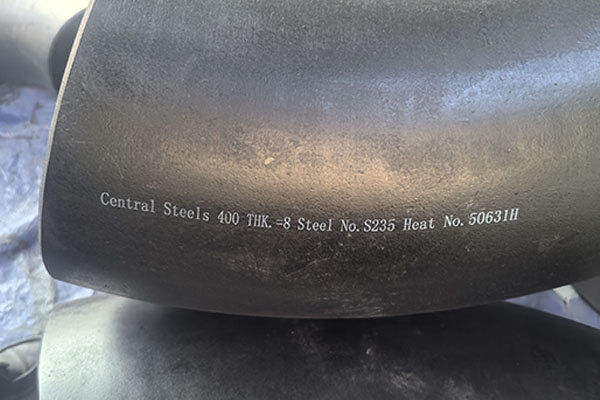

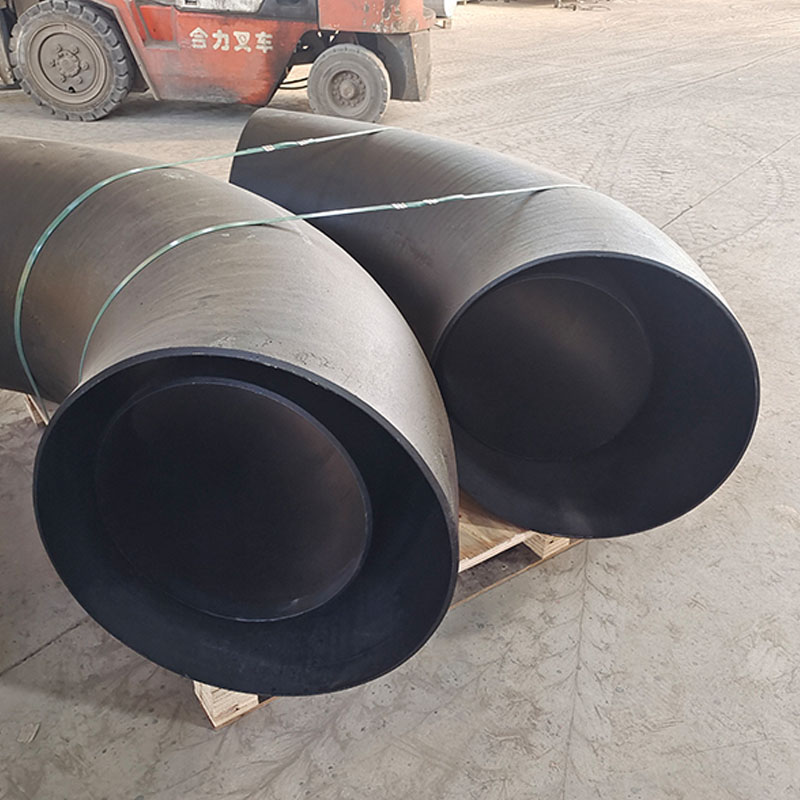

1. Carbon Steel Elbow

Material & Grades:

Standard Carbon: ASME / ASTM A234 WPB, WPC, DIN 1.0405 (St37.2) / 1.0481 (St45.8)
High Yield Steel (Pipeline): ASTM A860 WPHY 42, WPHY 52, WPHY 60, WPHY 65, WPHY 70; MSS SP-75
Low Temperature Steel: ASTM A420 WPL6

Dimensional Standards : ASME B16.9, JIS B2312, JIS B2313, EN 10253-2

Thickness / Schedule : Sch 20, STD, Sch 40, Sch 60, XS, Sch 80, Sch 100, Sch 120, Sch 140, Sch 160, XXS

Size Range : 1/2" – 48" (DN15 – DN1200) (Custom fabrication available for larger sizes)

Available Types :

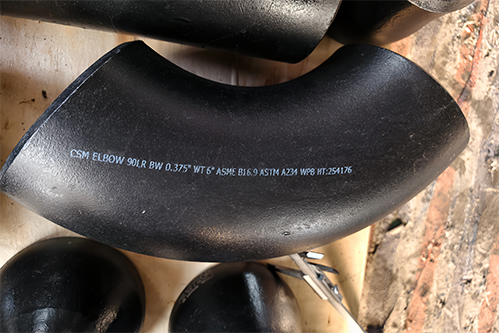

90° Long Radius (LR) Elbow

90° Short Radius (SR) Elbow

45° Long Radius (LR) Elbow

45° Short Radius (SR) Elbow

180° Long Radius (LR) Return Elbow

180° Short Radius (SR) Return Elbow

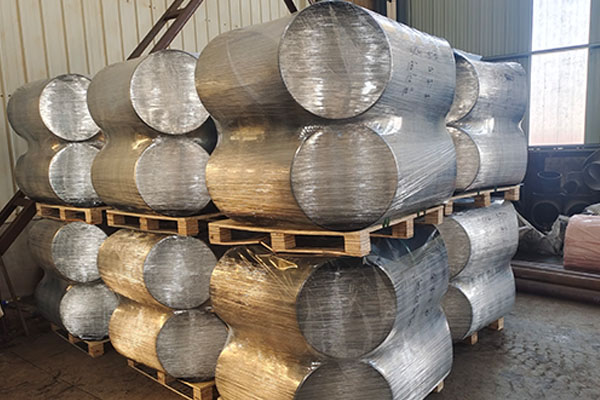

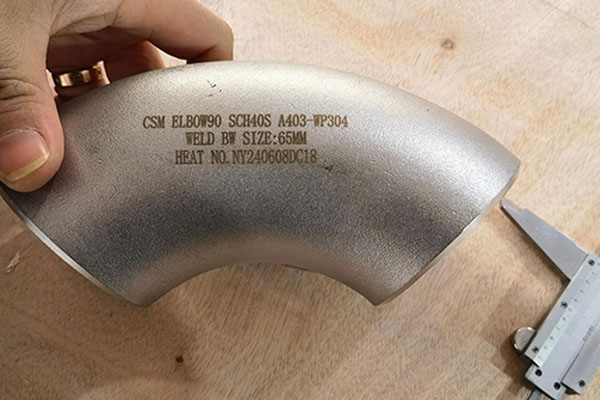

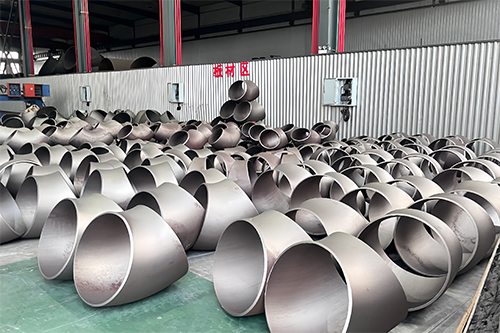

2. Stainless Steel Elbow

Material & Grades:

Austenitic Stainless: ASME / ASTM A403 WP304, WP304L, WP316, WP316L, WP304/304L, WP316/316L, WP321, WP347
EN / DIN Standards: 1.4301 (304), 1.4306 (304L), 1.4401 (316), 1.4404 (316L)
Duplex / Super Duplex: UNS S31803 (2205), UNS S32750 (2507)

Dimensional Standards: ASME B16.9, MSS SP-43 Type A/B, JIS B2312, JIS B2313, EN 10253-4

Thickness / Schedule: Sch 5S, Sch 10S, Sch 40S, Sch 80S, Sch 10, Sch 40, Sch 80, Sch 160

Size Range: 1/2" – 48" (DN15 – DN1200)

Available Types :
