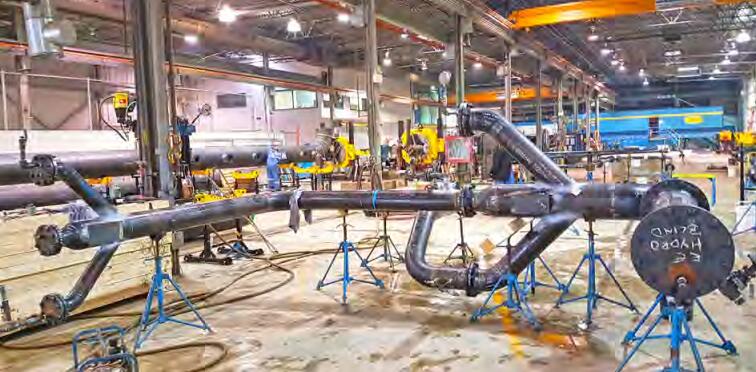

Piping System is a prefabricated component of a piping system.

All Pipe System is as per drawing by clients

Why use the pipe system
1. Pipe system is a proven means for reducing field installation costs while providing the highest of quality in the products fabricated.
2. Pipe system are often flanged to facilitate the connection to other spools. The fabrication of these spools is normally performed by specialist fabrication companies which are equipped with the required infrastructure.

	①Pipe, 3" SCH 80 ②ELBOW 90°RAD 3" SCH 80，BW ③Flange, RFSO, 3" 150# ④6" LG NIPPLE, SCH 80, BW
	①ELBOW 90°RAD 3" SCH 80，BW ②Flange, RFSO, 3" 150# ③9" LG NIPPLE, SCH 80, BW
	①ELBOW 90°RAD 3" SCH 80，BW ②Flange, RFSO, 3" 150# ③7 1/2" LG NIPPLE, SCH 80, BW
	①Pipe, 3" SCH 80 ②ELBOW 90°RAD 3" SCH 80，BW

	①Pipe, 3" SCH 80 ②Pipe, 3" SCH 80 ③Pipe, 3" SCH 80 ④ELBOW 90°RAD 3" SCH 80，BW ⑤Flange, RFSO, 3" 150#
	①Pipe, 3" SCH 80 ②Pipe, 3" SCH 80 ③Pipe, 3" SCH 80 ④Pipe, 3" SCH 80 ⑤ELBOW 90°RAD 3" SCH 80，BW ⑥Flange, RFSO, 3" 150#

	①Pipe, 3" SCH 80 ②Pipe, 3" SCH 80 ③Flange, RFSO, 3" 150#
	①Pipe, 3" SCH 80 ②Flange, RFSO, 3" 150#
	①Pipe, 3" SCH 80 ②Pipe, 3" SCH 80 ③Pipe, 3" SCH 80 ④ELBOW 90°RAD 3" SCH 80，BW ⑤Flange, RFSO, 3" 150#
	①Pipe, 3" SCH 80 ②Pipe, 3" SCH 80 ③ELBOW 90°RAD 3" SCH 80，BW ④Flange, RFSO, 3" 150# ⑤6" LG NIPPLE, 3" SCH 80, BW
	①Pipe, 3" SCH 80 ②ELBOW 90°RAD 3" SCH 80，BW ③Flange, RFSO, 3" 150# ④6" LG NIPPLE, 3" SCH 80, BW
	①Pipe, 3" SCH 80 ②Pipe, 3" SCH 80 ③ELBOW 90°RAD 3" SCH 80，BW ④Flange, RFSO, 3" 150# ⑤6" LG NIPPLE, 3" SCH 80, BW
