ASTM A572 GR.50 plates

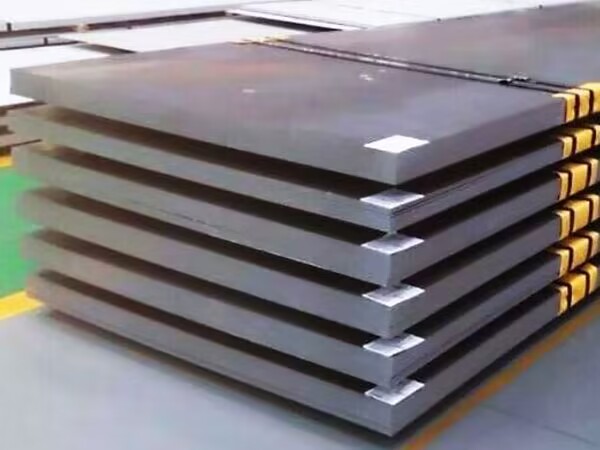

A572 GR.50 PLATES

The A572 GR.50 steel sheet is a high-strength, low-alloy steel produced according to ASTM A572 and has a wide range of applications in construction and structural engineering, especially suitable for structures that need to withstand high stress and high strength.

A572 GR.50 steel plate features:

Composition: A572 GR.50 is a low alloy steel, the main elements are carbon, manganese, silicon, phosphorus, sulfur. These alloying elements increase the strength and toughness of steel.

Mechanical properties: Tensile strength: 450-620 MPa (65,000-90,000 psi), yield strength: 345 MPa (50,000 psi), this grade of steel plate has higher yield strength and tensile strength, suitable for high-stress environments.

Easy welding: A572 Gr.50 has low carbon content, so it has good weldability, and can be welded by conventional welding methods, such as arc welding, gas shielded welding, etc., which is suitable for welding connections of large structures.

Easy machining: The A572 Gr.50 steel sheet is easily cut, drilled, bent and machined under conventional conditions. Due to its higher strength, it may require greater force than ordinary carbon steel when machining.

Applications:

Building structure: Structures such as high-rise buildings and Bridges need to withstand large loads and external forces such as strong winds and earthquakes, so the use of high-strength A572 Gr.50 steel plates helps to improve the safety and stability of the structure.

Marine and Marine engineering: Because A572 Gr.50 has good strength and toughness, it is suitable for the manufacture of offshore platforms, hulls and other Marine structures that need to withstand high strength stresses.

Railway and transportation facilities: A572 Gr.50 steel plates are often used in transportation infrastructure such as railway Bridges, track structures, and road guardrails to ensure that they can withstand frequent traffic shocks and long-term loads.

Advantages and disadvantages:

Advantages: The A572 Gr.50 steel sheet provides a high yield strength, allowing it to provide similar strength to ordinary carbon steel at a thinner thickness, which makes the structure lighter and less costly. Lighter weight, stronger load carrying capacity, strong fatigue resistance.

Disadvantages: corrosion resistance is general, A572 Gr.50 steel plate although high strength, but its corrosion resistance is general, especially in the ocean or high humidity environment, the need for additional anti-corrosion treatment, such as spray coating or galvanized. Due to the high strength of the A572 Gr.50, higher forces and special equipment are required for cutting and bending compared to ordinary A36 steel.

In summary:
A572 Gr.50 steel is a high-strength, low-alloy steel widely used in structural engineering requiring high load carrying capacity and durability, such as the construction of Bridges, heavy machinery and offshore platforms. It has high yield strength and good toughness while retaining good weldability and workability, making it ideal for structures that withstand high stress. However, proper protection in corrosive environments is required to extend its service life.
