Precision seamless pipe

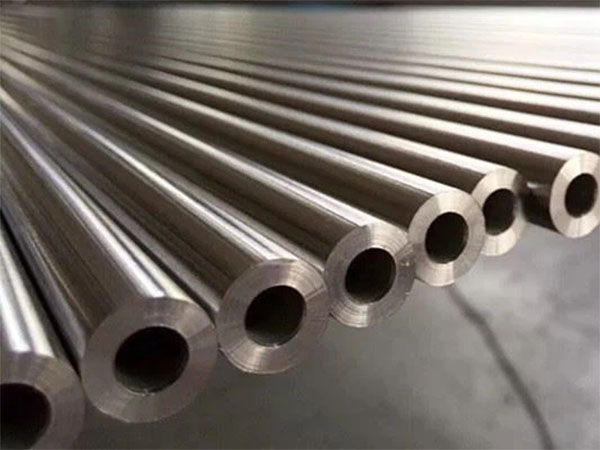

Precision seamless pipe is a seamless steel tube manufactured through cold drawing, cold rolling, precision sizing, or other secondary processing to achieve tighter dimensional tolerances, better surface finish, and more consistent mechanical properties than conventional seamless pipe. It is commonly used for hydraulic cylinders, pneumatic systems, automotive components, mechanical equipment, and other applications where dimensional accuracy and surface quality are critical.

Unlike ordinary hot-finished seamless pipe, precision seamless tube is further processed after the initial seamless tube is produced. This additional processing allows manufacturers to control the outside diameter, wall thickness, inside diameter, straightness, and surface finish more precisely.

What is precision seamless pipe?

Precision Seamless Pipe is a kind of high-precision pipe material made by secondary processing (cold drawing, cold rolling or pickling and straightening) on the basis of ordinary seamless pipe. It is produced by two-high and three-high finishing mills. Compared with traditional hot-rolled or hot-drawn seamless tubes, precision seamless tubes have:
The tolerance for outer diameter and wall thickness is smaller, usually reaching the ± 0.01mm level.
The inner and outer surfaces are smoother, with Ra≤0.8μm.
The mechanical properties are more uniform, and the consistency between ultimate strength and yield strength is better.

Cold Drawn Precision Seamless Tube vs. Hot-Finished Seamless Tube

Cold drawing is generally preferred when dimensional accuracy and surface quality are more important than simply achieving a large diameter or thick wall.

Characteristic	Cold-Drawn Precision Seamless Tube	Hot-Finished Seamless Tube
Working temperature	Mainly cold working after hot tube production	High-temperature forming/finishing
Dimensional accuracy	Higher	Standard
Surface finish	Smoother	Generally rougher
Straightness	Generally better controlled	Standard
Mechanical properties	Can be affected by cold working and final heat treatment	Mainly determined by material and heat treatment
Machining allowance	Usually lower	May require more machining
Typical applications	Hydraulic, pneumatic, automotive, mechanical components	Pressure piping, structural and general engineering applications
Best suited for	Precision dimensions and smooth surfaces	General-purpose seamless pipe requirements

The main advantages of precision seamless pipes

1. High dimensional accuracy and consistency: The cold drawing process ensures uniform outer diameter and wall thickness, eliminating the need for secondary cutting or grinding during assembly.
2. Excellent surface quality: The surface is smooth after bright annealing or pickling, free of oxide scale and cracks. With Ra≤0.4 μm, it can be directly used for high-precision assembly.
3. Enhance mechanical properties: The cold working hardening effect results in higher strength, and its fatigue resistance under cyclic loading is superior to that of ordinary seamless pipes.
4. Reduce post-processing costs: Due to high precision and good surface quality, secondary processing steps such as vibration grinding and polishing are reduced, shortening the production cycle.
5. Wide range of application fields: From automotive steering gears and hydraulic cylinders to furniture supports and medical equipment, its high-performance value can be demonstrated.

Industry standard comparison: GB/T 3639, EN 10305-1, ASTM A269

GB/T 3639 (Chinese national standard)

Scope of application: Cold-drawn precision seamless steel tubes for mechanical structures.
Key points: There are strict requirements for dimensional tolerance, surface quality and mechanical properties.

EN  10305-1 (eu standard)

Scope of application: Bright seamless steel pipes for fluid transportation.
Key points: Standardize the bright annealing process, chemical composition and mechanical property testing.

ASTM A269 (American Society for Testing and Materials standard)

Scope of application: Cold-drawn or cold-rolled precision seamless tubes for chemical, petrochemical and general purposes.
Key points: Pay attention to the chemical composition, mechanical properties and pressure resistance test requirements.

The precision of precision seamless tubes mainly depends on the specifications of the finishing mill. The more advanced the finishing mill, the higher the precision of the precision seamless tubes produced. CENTRAL STEEL has a complete precision seamless tube production line, which can achieve fully automatic production. Combined with fully automatic online size detection and straightening equipment, it can achieve ultra-high precision control of the tubes.

Frequently Asked Questions About Precision Seamless Pipe

What is a precision seamless pipe?

A precision seamless pipe is a seamless steel tube that undergoes additional cold drawing, cold rolling, sizing, or finishing processes to achieve tighter dimensional tolerances and better surface quality than conventional seamless pipe.

What is the difference between precision seamless pipe and ordinary seamless pipe?

The main difference is dimensional and surface accuracy. Precision seamless tubes receive additional finishing processes, providing tighter control of OD, ID, wall thickness, straightness, and surface finish.

Is precision seamless pipe the same as cold drawn seamless tube?

Not necessarily. Cold drawing is one of the main manufacturing processes used to produce precision seamless tubes, but the term “precision seamless tube” describes the required product characteristics rather than one single manufacturing process.

What is the main advantage of cold drawn seamless tubes?

The main advantages are improved dimensional accuracy, smoother surface finish, better straightness, and reduced machining requirements compared with many hot-finished seamless tubes.
