SCH40 cs pipes

Date:2024-10-23View:192Tags:carbon steel pipe, sch40 cs pipes

There are various grades of steel pipe, and the specifications of each grade are not the same, among which SCH40 indicates the thickness of the pipe, and the thickness of the pipe will increase with the increase of the number, while CS represents the material of the product is carbon steel.

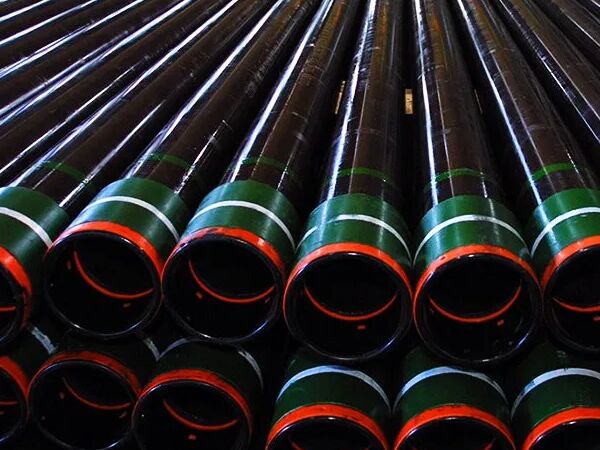

SCH40 cs pipes

What is SCH40 carbon steel pipe?

SCH40 carbon steel pipe is the most common pipe specification, it is a good pipe, it can be galvanized, but it does not necessarily have to be galvanized, it is usually used in water and gas lines, but also can be used in places that need decoration and support.

SCH40 carbon steel pipe features:

Material and chemical composition
The chemical composition of SCH40 carbon steel tubes may vary depending on the specific grade and type of steel used, but usually includes the following elements: carbon (C), manganese (Mn), phosphorus (P), sulfur (S), silicon (Si), copper (Cu), chromium (Cr), nickel (Ni).
SCH40 carbon steel pipe grades
Common grades are as follows:
ASTM A53 Class B: This is the most commonly used class of steel pipe No. 40 and is suitable for a variety of applications, including piping, industrial, construction and other related uses. It has a minimum yield strength of 35,000 psi and a minimum tensile strength of 60,00psi.
ASTM A106 Class B: This class of No. 40 steel pipe is commonly used in high temperature applications such as natural gas and steam pipelines, oil refineries, etc. It has a minimum yield strength of 35,000 psi and a minimum tensile rating of 60,00psi.
ASTM A333 Class 6: This class of No. 40 steel pipe is specifically designed for cryogenic service and is commonly used in cryogenic applications, such as LNG plants. It has a minimum yield strength of 35,000 psi and a minimum tensile strength of 60,00psi.

API 5L Grade B: This is another commonly used grade of No. 40 steel pipe, mainly used in the oil and gas industry. It has a minimum yield strength of 35,000 psi and a minimum tensile strength of 60,00psi.

SCH40 carbon steel pipe main applications:

Pipeline: Used to transport water, gas, oil and other fluids, especially in medium pressure systems, such as building water supply and drainage pipelines and industrial gas pipelines.
Building structure: Used as support structure, steel frame, fence and other building materials.
Machining: For the manufacture of mechanical parts and pipe fittings.

Chemical processing: Used in chemical factories to transport acids, alkalis and other corrosive chemical components, and can also be used to transport other substances in corrosive environments.

Schedule 40 Pipe size chart, dimensions, wall thickness and weight:

Nominal size [inches]	Outside diameter [inches]	Outside diameter [mm]	Wall thickness [inches]	Wall thickness [mm]	Weight [lb/ft]	Weight [kg/m]
1/8 inches	0.405 inches	10.3 MM	0.068 inches	1.73 MM	0.24 lb/ft	0.37 kg/m
1/4 inches	0.540 inches	13.7 MM	0.088 inches	2.24 MM	0.42 lb/ft	0.84 kg/m
1/2 inches	0.840 inches	21.3 MM	0.109 inches	2.77 MM	0.85 lb/ft	1.27 kg/m
3/4 inches	1.050 inches	26.7 MM	0.113 inches	2.87 MM	1.13 lb/ft	1.69 kg/m
1 inches	1.315 inches	33.4 MM	0.133 inches	3.38 MM	1.68 lb/ft	2.50 kg/m
1 1/4 inches	1.660 inches	42.2 MM	0.140 inches	3.56 MM	2.27 lb/ft	3.39 kg/m
1 1/2 inches	1.900 inches	48.3 MM	0.145 inches	3.68 MM	2.72 lb/ft	4.05 kg/m
2 inches	2.375 inches	60.3 MM	0.154 inches	3.91 MM	3.65 lb/ft	5.44 kg/m
2 1/2 inches	2.875 inches	73.0 MM	0.203 inches	5.16 MM	5.79 lb/ft	8.63 kg/m
3 inches	3.500 inches	88.9 MM	0.216 inches	5.49 MM	7.58 lb/ft	11.29 kg/m
3 1/2 inches	4.000 inches	101.6 MM	0.226 inches	5.74 MM	9.11 lb/ft	13.57 kg/m
4 inches	4.500 inches	114.3 MM	0.237 inches	6.02 MM	10.79 lb/ft	16.07 kg/m
5 inches	5.563 inches	141.3 MM	0.258 inches	6.55 MM	14.62 lb/ft	21.77 kg/m
6 inches	6.625 inches	168.3 MM	0.280 inches	7.11 MM	18.97 lb/ft	28.26 kg/m
8 inches	8.625 inches	219.1 MM	0.322 inches	8.18 MM	28.55 lb/ft	42.55 kg/m
10 inches	10.750 inches	273.0 MM	0.365 inches	9.27 MM	40.48 lb/ft	60.31 kg/m
12 inches	12.750 inches	323.8 MM	0.406 inches	10.31 MM	53.52 lb/ft	79.73 kg/m
14 inches	14 inches	355.6 MM	0.375 inches	11.13 MM	54.57 lb/ft	94.55 kg/m
16 inches	16 inches	406.4 MM	0.500 inches	12.70 MM	82.77 lb/ft	123.30 kg/m
18 inches	18 inches	457.0 MM	0.562 inches	14.27 MM	104.67 lb/ft	155.80 kg/m
20 inches	20 inches	508.0 MM	0.594 inches	15.09 MM	123.11 lb/ft	183.42 kg/m
24 inches	24 inches	610.0 MM	0.688 inches	17.48 MM	171.29 lb/ft	255.41 kg/m
32 inches	32 inches	813.0 MM	0.688 inches	17.48 MM	230.08 lb/ft	342.91 kg/m
