How to reasonably choose API 5CT H40 casing

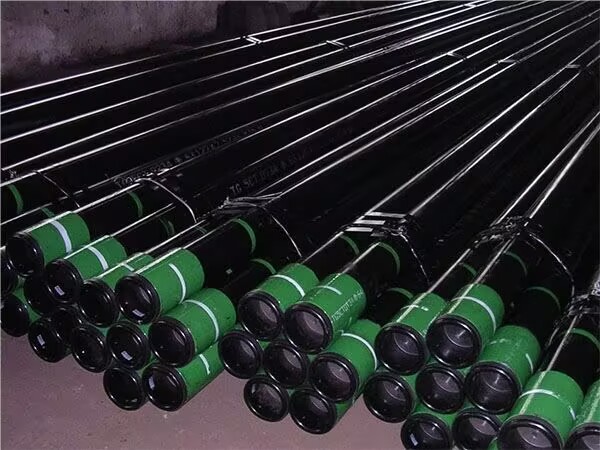

API 5CT H40 casing is a class commonly used in the oil and gas industry and is designed to ensure well integrity and operational safety. Selecting the right casing grade for the application is critical to the performance and life of the well. The following is a guide to API 5CT H40 casing and its suitability.

Factors to consider when selecting API 5CT H40 casing

Selecting the right casing grade requires a comprehensive evaluation of several factors to ensure optimal performance in a given well. Here are the key considerations:

Strength and performance
API 5CT H40 provides moderate tensile and yield strength for use in shallow Wells or low pressure environments. Although not as strong as high grade casings such as J55 or N80, it is sufficient for basic applications.

Corrosion resistance
API 5CT H40 is not designed for highly corrosive environments, but its corrosion resistance can be improved by coating or treatment. When used in a slightly corrosive environment, additional anti-corrosion protection is required.

Temperature and pressure adaptability
The H40 casing is designed for low pressure and low temperature Wells. Its mechanical properties meet the needs of applications that do not require extreme strength or thermal stability.

cost-effectiveness
As a lower cost casing class, API 5CT H40 is an economical choice for shallow Wells or temporary installations. Its high price/performance ratio makes it ideal for projects with limited budgets while meeting basic performance requirements.

Compatibility with well design
Ensure casing grades match the overall well design and drilling plan. For deeper or more complex well conditions, higher casing grades such as J55 or N80 may be required.

API 5CT H40 casing for common applications

Surface casing
H40 is commonly used in surface casing to secure the upper part of the wellbore to prevent well collapse.

Shallow well application
Ideal for shallow Wells and low operating pressure and temperature environments.

Low corrosion environment
Mainly used in less corrosive areas, reducing the need for material protection.


Mechanical properties of API 5CT H40

Grade	Yield Strength (MPa)	Tensile strength (MPa)	Elongation (%)
H40	276-552	≥414	≥20

Casing material market trends

With advances in wellbore design and production technology, the demand for casing materials is changing. While the H40 remains an affordable solution for shallow Wells, the industry is moving to high-performance grades such as the J55 and N80 to address complex drilling environments. In addition, the use of corrosion resistant alloys and advanced coatings is increasingly popular to extend the service life of casing materials in harsh environments.

Select key points for API 5CT H40 casing

Evaluate well depth, pressure, and temperature conditions to ensure the H40 meets demand.
Assess the risk of corrosion and add protective coatings or select alternative materials as needed.
Prioritizing economics in shallow Wells or low-risk applications while ensuring adequate strength and reliability.
Work with reliable suppliers to ensure API 5CT compliance and consistent quality.

By understanding the specific performance and limitations of API 5CT H40 casing, you can make informed decisions to optimize well performance while effectively managing costs.
